Thunderbolt 4 BLAZE Docking Station

SKU: TB4D3TB
Sale price$549.99

FLASH SALE 🔥 | Get 20% Off Using Code ALG20

2-Year Limited Warranty

Based In New Zealand

14-Day Returns

Free Freight Over $100

Secure Checkout

Expert Support

Blazing Thunderbolt™ 4 Performance

Perfect for when speed and performance matter, this Thunderbolt™ 4 certified dock can handle 40Gbps of data, allowing you to connect to two displays with a single cable, or maximise high-speed peripherals like external hard drives. Unlike existing Thunderbolt™ docks which only provide a single Thunderbolt™ downstream port, the BLAZE dual monitor docking station can connect up to three downstream Thunderbolt™ or USB 4.0 peripherals. SD card, Ethernet and USB-A connections make BLAZE an invaluable tool for creative professionals and power users alike.

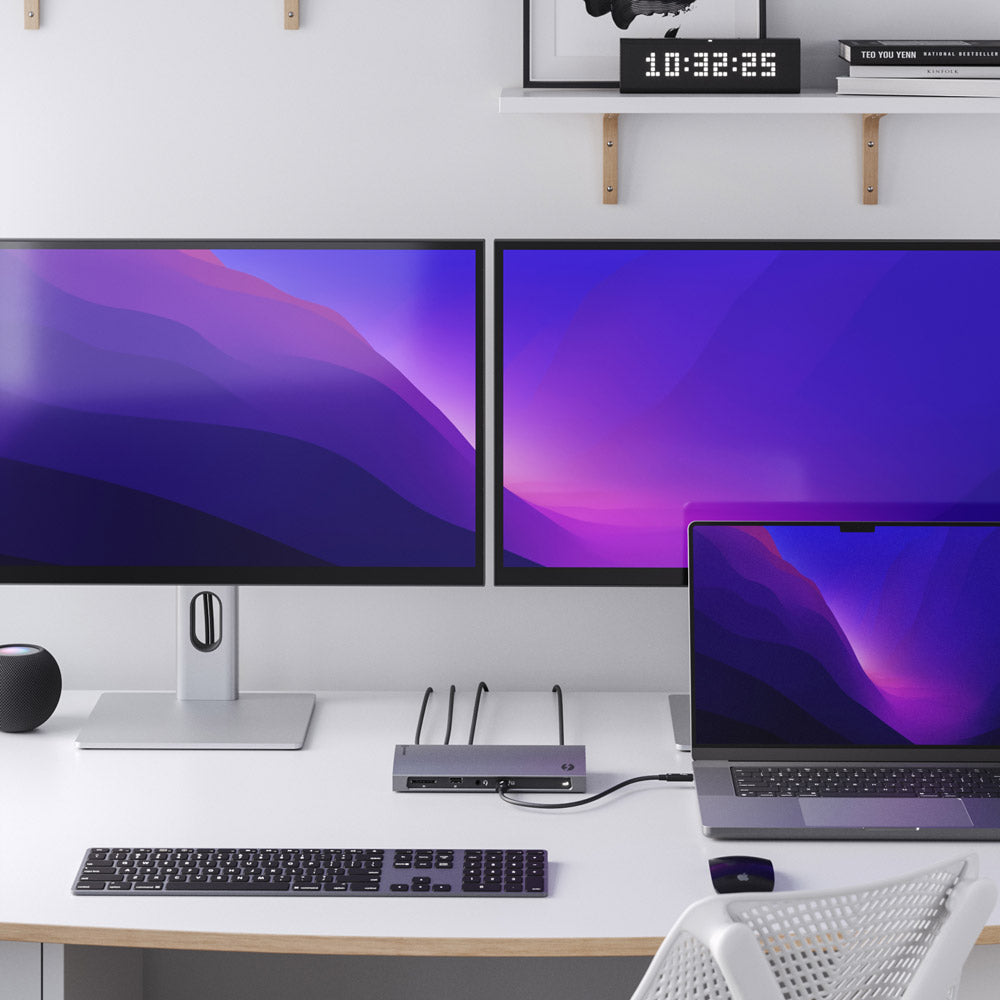

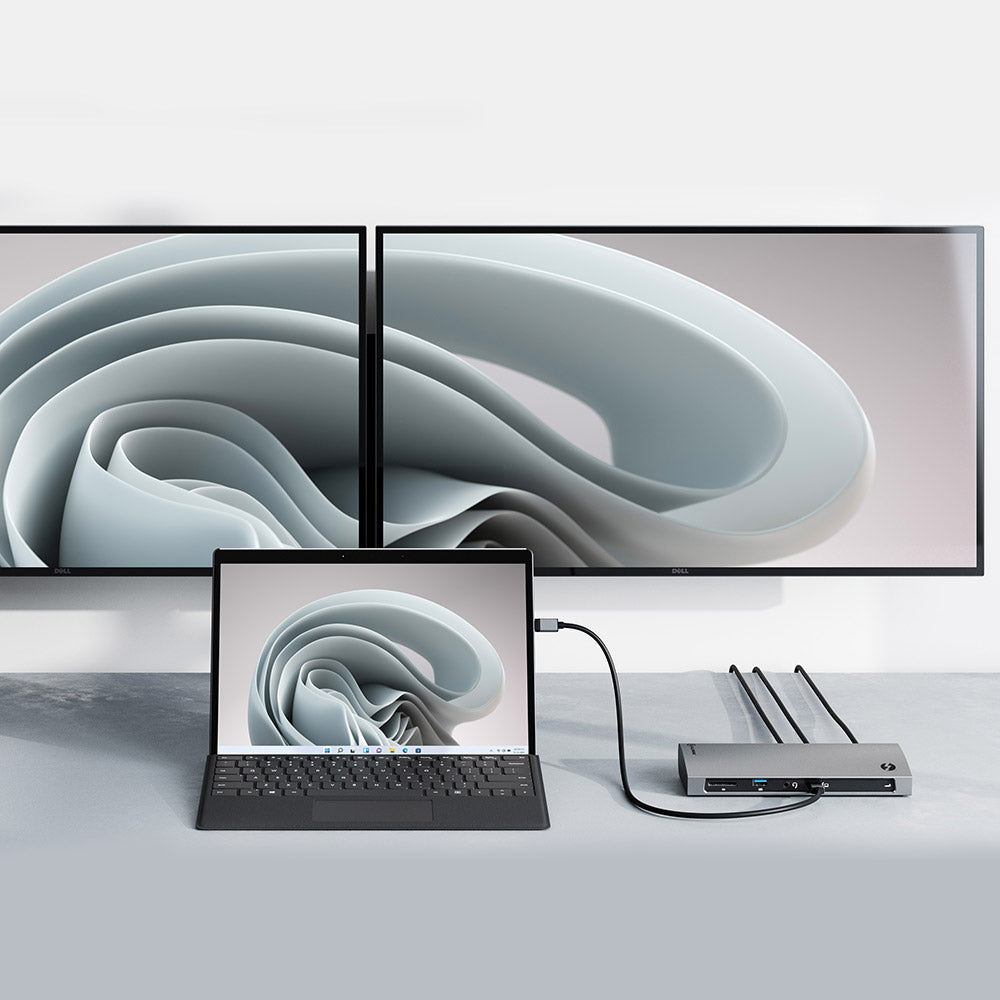

Connect to Dual 4K

The BLAZE Thunderbolt™ 4 dock connects Thunderbolt computers to two 4K displays, while USB-C DP Alt Mode computers can connect to one 4K screen:

  • Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
  • USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz
Comprehensive Connectivity

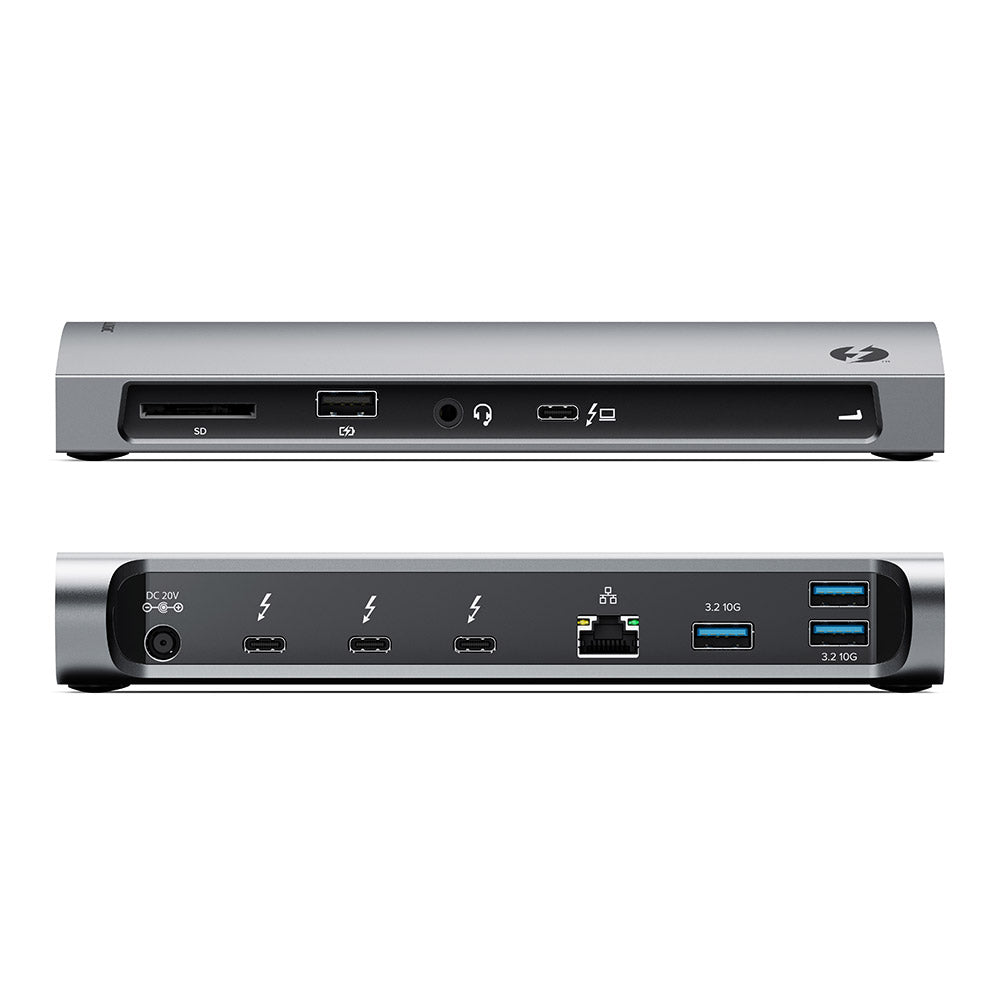

The BLAZE Thunderbolt™ 4 certified 4k docking station features ten ports that allow users to connect to a wide variety of peripherals, including:

  • 3 x Thunderbolt/USB-C (40Gbps)
  • 3 x USB-A (10Gbps)
  • 1 x USB-A with Mobile Device Charging (480Mbps)
  • Gigabit Ethernet
  • Combo Headphone/Microphone Audio Jack
  • SD 4.0 Card Reader
  • Single Cable Simplicity
Single Cable Simplicity

The BLAZE docking station doesn’t just provide your computer with ten extra connections – it does so over a single Thunderbolt™ 4 cable. In addition to its versatile data and video options, BLAZE’s single cable provides up to 96W USB-C PD laptop charging, sufficient to power most including 16” MacBooks.

Frequently Asked Questions

General

How many screens can I connect to with this dock? What resolutions does it support?
Thunderbolt 3/4, USB 4.0 Hosts

Dual Display: 4K (3840 x 2160) at 60Hz* USB-C USB 3.x Hosts

Single Display: 4K (3840 x 2160) at up to 60Hz†


* M1 based Apple devices can only support a single external monitor connected via Thunderbolt or USB-C DisplayPort Alternate Mode.

† USB-C port must be DisplayPort 1.4 Alternate Mode compatible for 4K output at 60Hz. Machines supporting DisplayPort 1.2 will output resolutions up 2560x1600 at 60Hz or 4K at 30Hz.
How fast can this charge my laptop?
When connected to the supplied 135W power adapter, the dock can provide up to 90W power to your computer.

Troubleshooting

Video doesn’t show on external display
Ensure that the power supply is plugged into the dock and switched on at the wall
Check that the USB-C video cable is connected securely between the monitor and device and the device is securely connected to the computer
Check that the external monitor is turned on and set to the correct input
Check that your computer is detecting the external display and is set to show video on it
Check that the USB-C port on the computer that you have connected the dock to is a
Thunderbolt port or a USB-C port that supports video output using DisplayPort Alternate Mode
If the computer doesn’t detect the external monitor or output video after checking the above, restart your computer and attempt again
If connecting to a monitor with a USB-C or Thunderbolt input, ensure that the cable you are using supports full speed data. Many USB-C cables are intended for charging only and only support USB 2.0.
Video drops out intermittently
If your connected display is flickering during use, please try the following steps to resolve the issue.

Check that the USB-C video cable is connected securely between the display and device
Check that the device is securely connected to the computer
Check that the USB-C video cable being used to connect to the display is of good quality and isn’t damaged
Computer doesn’t start charging when the device is connected
If your connected display is flickering during use, please try the following steps to resolve the issue.

Ensure that the power supply is connected at the wall and turned on, and the USB-C cable supplying power is securely connected to the computer
Verify that the port on the computer is a Thunderbolt port or a USB-C port that supports charging from a USB PD power source
Specifications
  • SKU: TB4D3TB
  • Barcode (EAN): ()
  • Displays: Single display, Dual display
  • Displays: Dual display
  • Host Connection Technology: USB-C or Thunderbolt 3 or 4
  • Operating System: Mac (Apple), Windows (Microsoft)
  • 4K: Yes
  • Mac Processor Type: M1/M2, M1/M2 Ultra/Pro/Max, Intel
  • USB Port: 4+
  • Display supported on Mac M1/M2: Single display
  • Card Reader: Yes
  • Display supported on Mac M1/M2 Ultra/Pro/Max: Single display, Dual display
  • Gigabit Ethernet: Yes
  • Display supported on Mac Intel: Single display, Dual display
  • Display supported on Windows: Single display, Dual display
  • Display supported on Chrome: Single display
  • Display supported Universal: Single display, Dual display
  • Video Outputs: Thunderbolt
  • Docking Station Type: Desktop
  • Warranty: 2 Years
  • Laptop Charging: 96W
  • Physical Characteristics: Aluminium Body (Space grey)
  • Additional Features: Ethernet, 3.5mm Audio, Card Reader
  • System Requirement: USB-C DP Alt Mode. Port
  • Packaging: Retail
  • Device Compatibility: Apple, Microsoft
  • Packaging: Retail Box
