New Launch

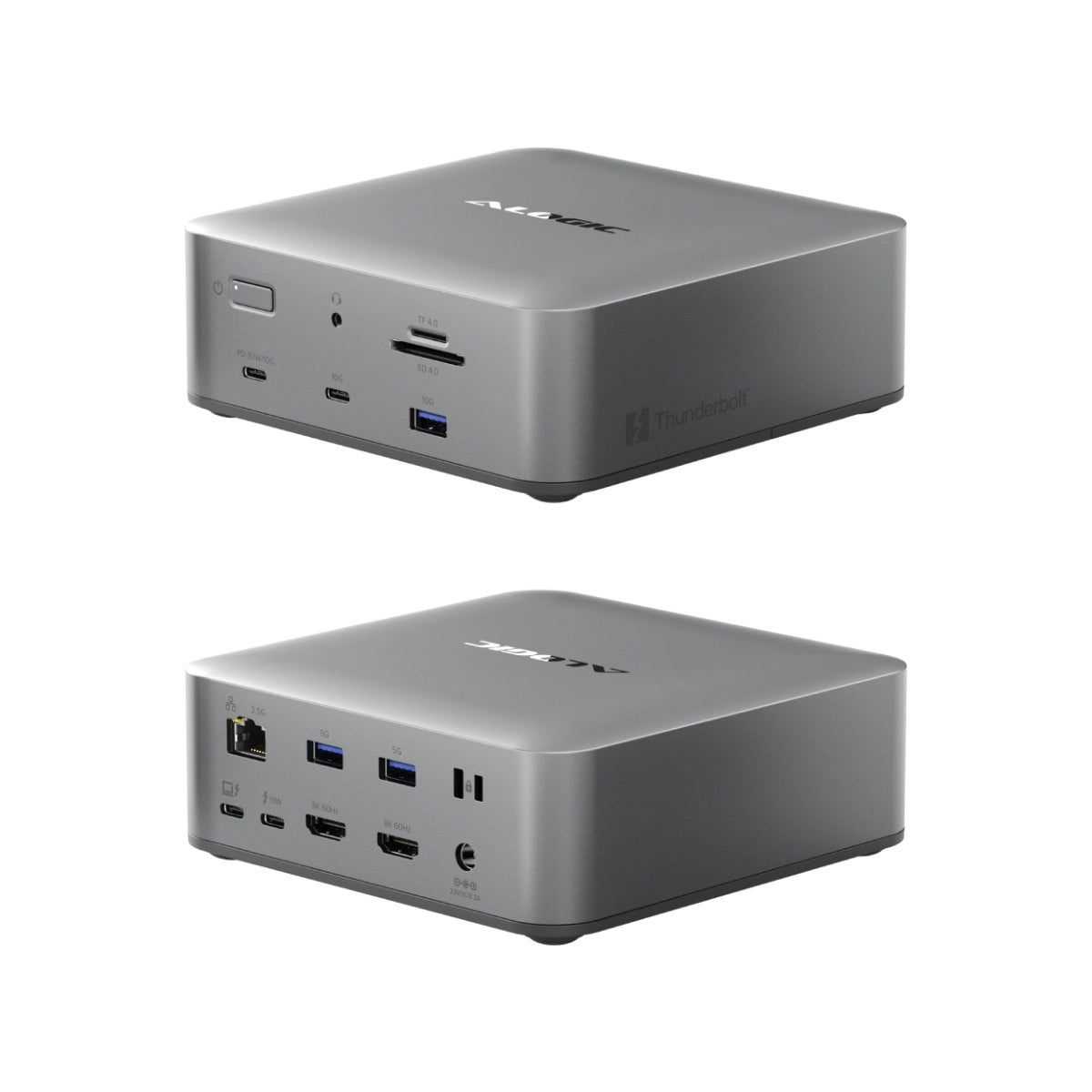

FlashDock 5 13-in-1 Thunderbolt 5 Docking Station with SSD Support

Name: FlashDock 5 13-in-1 Thunderbolt 5 Docking Station with SSD Support
Brand: ALOGIC NZ
SKU: TB5D3-SSD
Price: 549.99 NZD
Availability: InStock

FlashDock 5 13-in-1 Thunderbolt 5 Docking Station with SSD Support

New Launch

FlashDock 5 13-in-1 Thunderbolt 5 Docking Station with SSD Support

SKU: TB5D3-SSD

$549.99

Free Shipping
24/7 Customer Support

2 Years Warranty
100% Secure Shopping

Specifications

Physical Characteristics: Product Dimensions: 140 x 140 x 50mm (W x D x H)
Colour: Space Grey and Black
Weight (product): 870g
Materials: ABS
Warranty: 2 Years

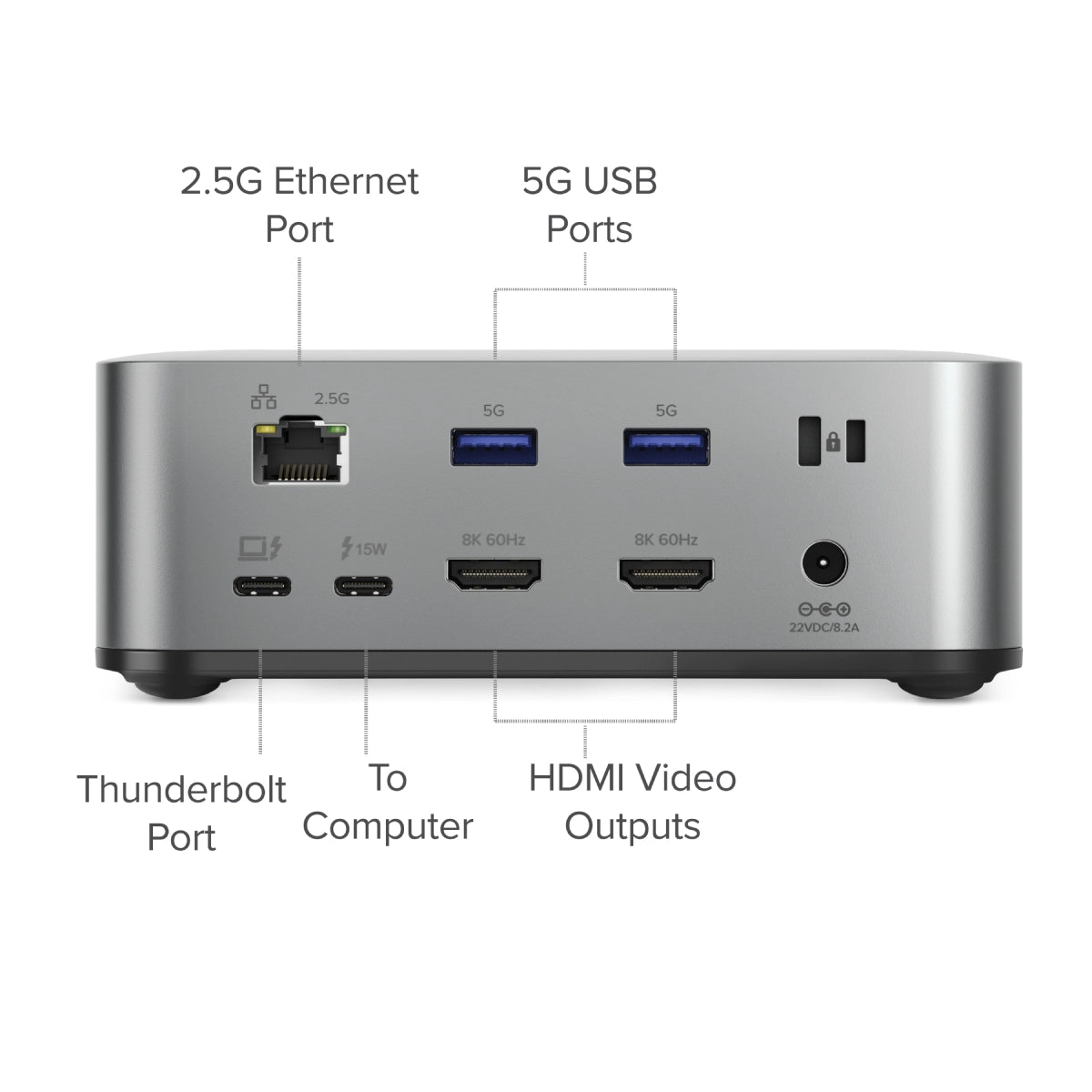

Inputs: 1 x Thunderbolt 5 port for connection to a computer
May be used with non-Thunderbolt computers that support USB-C DisplayPort Alternate for connection of up to 2 displays.
Outputs: 1x Thunderbolt™ 5 Downstream Port40Gbps | 1x 8K / 2x 4K 60Hz Max
2x HDMI 2.1 (max 7680x4320 60Hz)

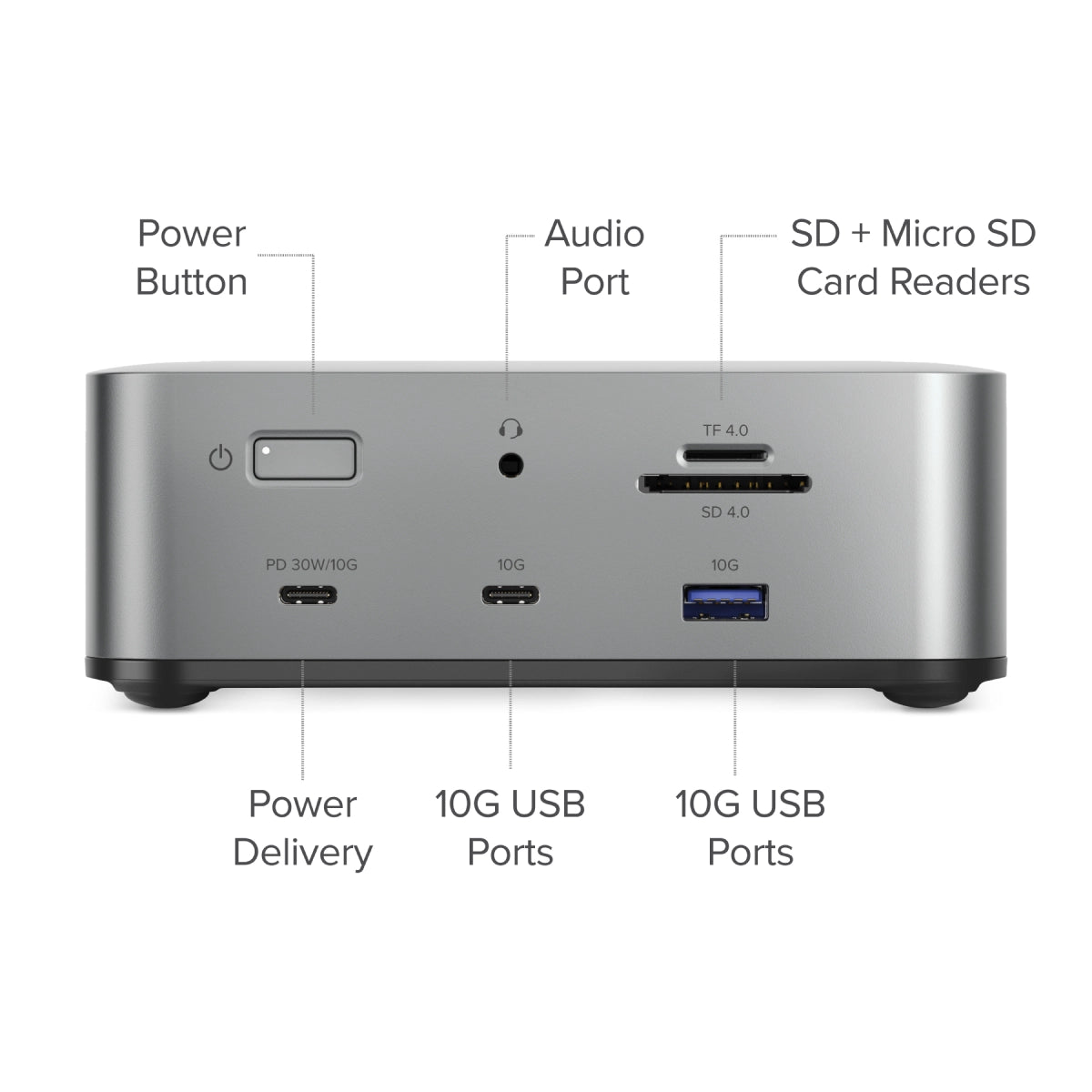

1x USB-C 3.2 Gen 2 (10G) with 30W PD for device charging
1x USB-C 3.2 Gen 2 (10G)
1x USB-A 3.2 Gen 2 (10G)
2x USB-A 3.2 Gen 1 (5G)
1x 3.5mm Combo Audio / Microphone Jack (384kHz)
1x RJ45 Ethernet 2.5Gbps
1x SD Card Reader (SD 4.0 / UHS-II - 312Mbps)
1x Micro SD/TF Card Reader (SD 4.0 / UHS-II - 312Mbps)
1x M.2 (NVMe PCIe Gen4x4, Max 6000MB/s)
SSD Support:
Supports M.2 NVMe PCIe SSDs with M key and B+M keyed connectors (M keyed/SATA drives not supported).
PCIe Gen4x4, 6000MB/s max read/write speed.
Supports 2280, 2260, 2242, 2230 sized drives.
NB: Drives with wrap around heatsinks are not recommended due to clearance constraints
underneath the SSD. If considering installing a drive with a heatsink in this
docking station, check the dimensions carefully before purchasing the drive.
(Heat spreaders on the top side of drives should not cause any installation
issues).
Charging: Docking station provides up to 140W of power to connected hosts that support USB-C Power Delivery.
·     Computers with PD 3.0 SPR charging support: Up to 20V⎓4.8A/96W
·     Computers with PD 3.1 EPR charging support: Up to 28V⎓5A/140W
Supports dynamic power allocation to distribute power to the connected laptop and peripherals according to real time demand.
Video Resolution: Up to 3x 4K or 2x 8K independent video outputs dependent on the capabilities of the connected computer.
*See resolution support tables below for maximum outputs for
computers with differing capabilities
Audio Support: Analogue audio stereo output plus mono microphone/line in
Supports 24/32-bit, 44.1/48/96/192/384KHz sample rates
Automatic CTIA/OMTP mode detection and switching
Power Adapter: Supplied with 21V⎓8.57A, 180W power adapter and 4x mains power leads to suit AU/NZ, EU, UK and US power outlets.
Power Adapter Input Voltage: 100-240VAC
Mains Supply Frequency: 50-60 Hz
Package Includes: 1 x FlashDock 5 Docking Station
1 x 80cm Thunderbolt 5 USB-C Cable
1 x 180W Power Adapter
4 x 1m Power Cables (AU/EU/UK/US)
1 x User Manual
Device Compatibility: Windows, MacOS, ChromeOS Computers
Some feature limitations apply when used with computers that do not support Thunderbolt 5. The limitations may include reduced speeds, a reduced number of supported displays and SSD storage not
being available to the computer.
Refer to the Feature Availability fornon-Thunderbolt 5 Computers section below for an indication of the features that may be affected for different types of computer.
Environmental:
                             Operating          Storage

Temperature 0-35°C -10-60°C

Humidity 10-80% 5-90% (RH, no condensation)
Compliance: Intel Thunderbolt, FCC, CE, RCM, RoHS
Barcode (EAN): 9350784106193

Downloads

Specification Sheet

User Manual

FlashDock 5

120Gbps

passthrough charging

triple display dock

140W

data transfer speeds

2x

Faster than Thunderbolt 4

120Gbps

Data transfer speeds

140W

Passthrough charging

13-in-1

Connectivity

13 Port Dock with M.2 Storage Slot

Unleash the true potential of your computer

Unchain your computer and work without compromise with the FlashDock 5.

Expanded Visual Workspace

Connect up to 3x Ultra High Definition displays

One Cable – 13 Ports

No fuss connectivity for peripherals and accessories

Lightning Speed

80Gbps bandwidth for lightning-fast transfers with Thunderbolt™ 5

140W Charging

Charge even the most power-hungry laptops at the fastest speeds possible

Extra Storage

Built in support for solid state drives up to a massive 8TB

Certified Reliability

Certified by Intel for compatibility with PC, Mac and ChromeOS*

Triple 4K / Dual 8K Display

FlashDock 5 supports up to two 8K, or three 4K displays*, enabling greater productivity and the finest visual experience possible.

* The available number of outputs and maximum resolutions are dependent on the capabilities of the computer used with the docking station. Macbooks support different numbers of displays depending on the particular model. Refer to the resolution support table for full details on the output capabilities of computers based on their specifications.

3x Display
Thunderbolt 5

3x 4K 144 Hz

2x Display
Thunderbolt 4/3 or USB4

2x 8K 60 Hz

1x Display
USB-C

1x 8K 60 Hz

Connect All The Things

FlashDock 5 provides an abundance of ports to expand the capabilities of your computer. Connect displays, network and audio devices. Add USB and Thunderbolt™ peripherals. Move media files between memory cards. The possibilities are endless.

Lightning Speed

FlashDock 5 harnesses the power of Thunderbolt™ 5 to do everything faster.

FlashDock 5 offers twice the speed of previous Thunderbolt™ devices and up to 16x the speed of USB 3.0 devices to get more done in less time. Bandwidth Boost technology dynamically pushes transfer speeds even further to a staggering 120Gbps when needed.

Up to 8TB Storage Expansion

Never run short of space for files and media. Effortlessly add storage to your PC by installing an optional SSD (not included). Simply slide the bottom cover off the FlashDock to reveal an M.2 NVMe® PCIe® Gen 4x4 SSD slot, supporting blistering read and write speeds up to 6000MB/s.†

† SSD shown for illustrative purposes. SSD is optional and not included – available for purchase separately. Check the SSD Support section of the specifications for supported drives before purchasing a drive for use with the dock to ensure that it is compatible. SSD feature is only supported by host computers with Thunderbolt™ 3 or later.

140W Charging

With a 180W power adapter featuring GaN technology for powerful and efficient operation, FlashDock 5 can charge even the power hungriest laptops with up to 140W of power.

Intel, Thunderbolt, and the Thunderbolt logo are trademarks of Intel Corporation, registered in the U.S. and other countries. Mac and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. Other trademarks are the property of their respective owners.
