Matrix Universal Magnetic Car Charger with Air Vent Mount
With fast convenient wireless charging just a touch away, you’ll never need to worry about running empty on the road again.
Whether you need a portable MagSafe battery, a desk charger, a car charger, or a watch charger, the Alogic Matrix system has you covered - at home or on the go.
ALOGIC Matrix 3-in-1 Magnetic Charging Dock – Best modular 3-in-1 magnetic charger
ALOGIC’s Modular Matrix Charging System Is MagSafe Compatible And Ideal For iPhones
ALOGIC’s new Matrix ecosystem makes wireless charging easy anywhere.
Matrix 3-in-1 Charging Dock shown in video sold separately.
- Universal Wireless Charger
- Secure MagSafe Mount
- Add On Accessories
-
*For Qi compatible Samsung™ and Google™ phones
-
-
*Sold Separately No.: MSPB5KWH
Always Wanted
Whether you’re out of town and relying on Google Maps to make it to tonight’s accommodation, delivering packages all day or on an important call with a prospective client, Matrix gets you where you’re going.
If you need to make a pit stop, you can slide the Car Charger out and take it with you. You can additionally buy Matrix Power Bank and swap out the wireless phone-charging block with the Wireless Power Bank.

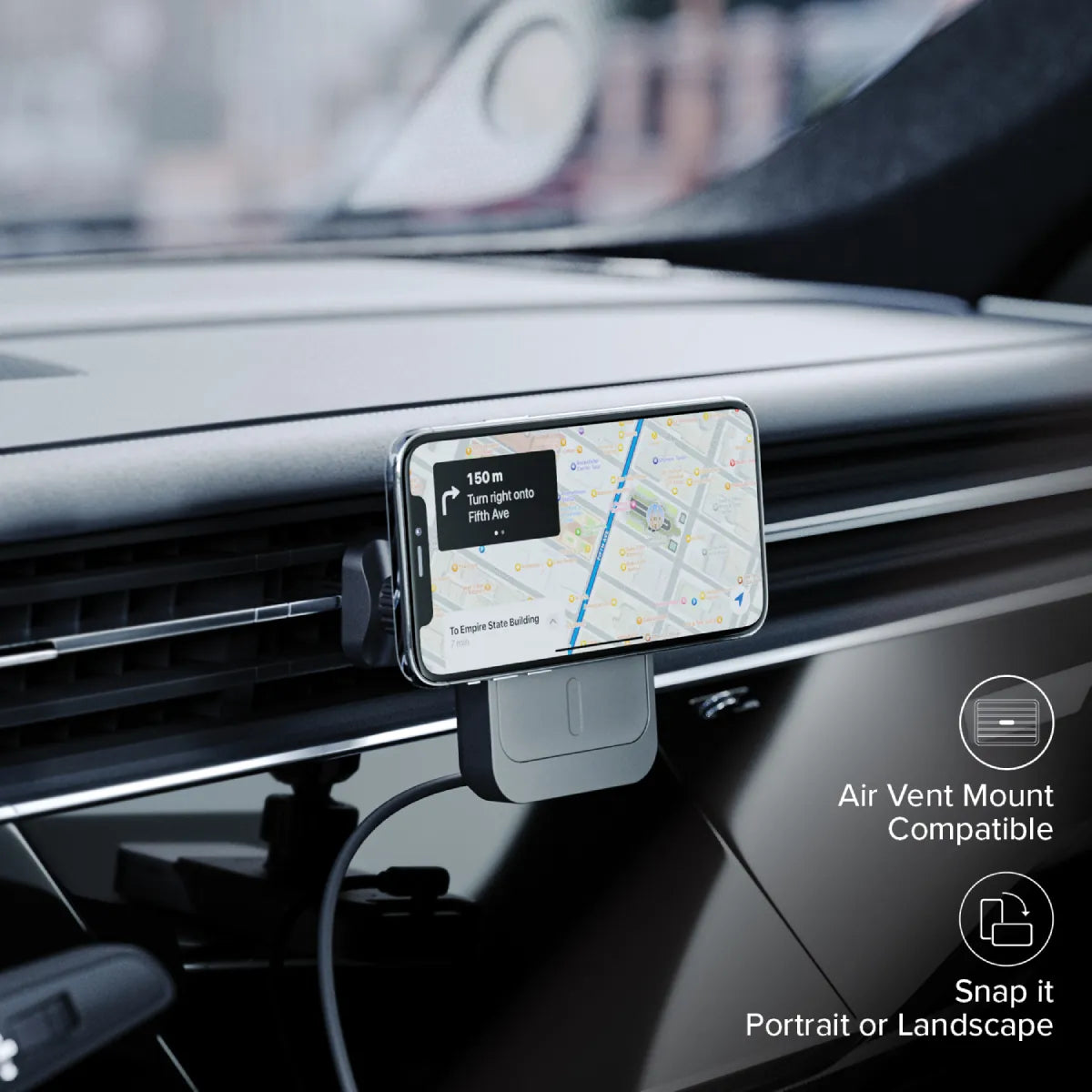

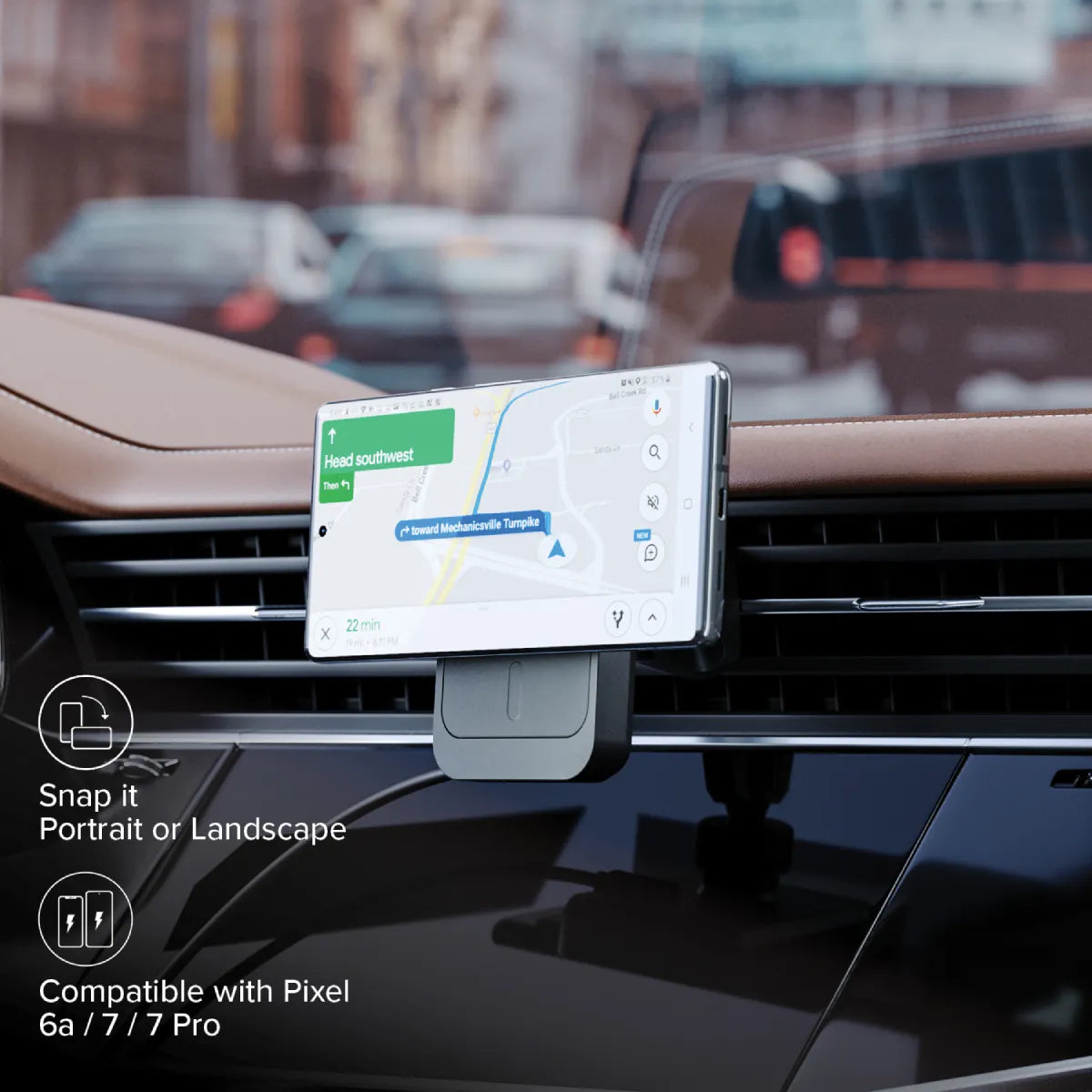

Effortlessly switch viewing orientation between listening to music, accessing navigation, making hands-free calls, uninterrupted.
The dock's custom magnetic car charging cradle makes it easy to align your phone for charging and holds it secure, even on the bumpiest roads.
With a unique right-angled USB-C charging cable designed to fit neatly behind your charger and a 30W car power adapter, all you need to bring is a car.

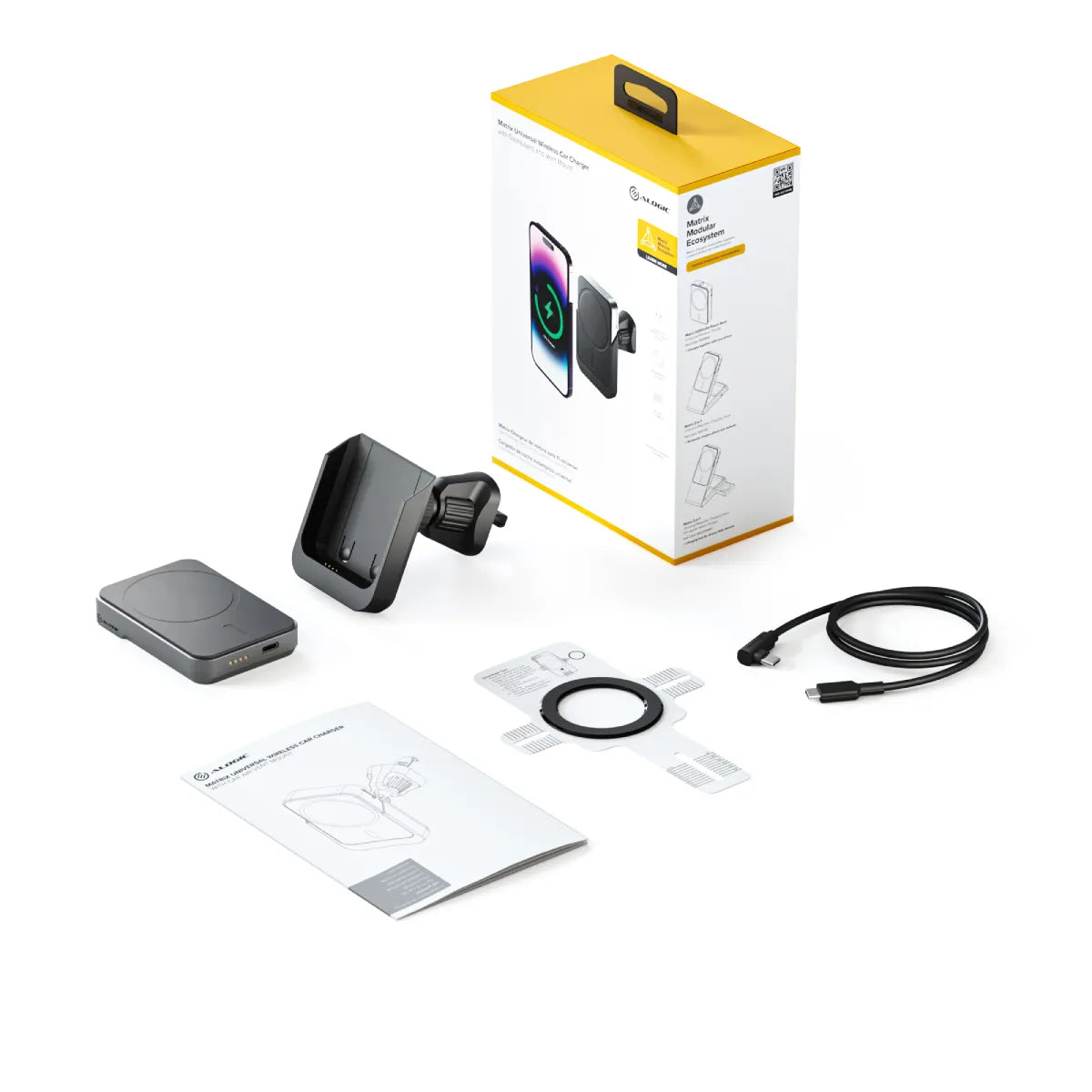

- 1 Matrix Magnetic Charging Pad
- 2 Air Vent Mount
- 3 50cm Right Angled USB-C to USB-C Cable
- 4Magnetic Support Ring and Alignment Tool
- 5 Quick Start Guide
- 6 30W Car Power Adapter (Not Pictured)
General
Loosen and remove the nut on the rear of the car mount. Place the nut over the ball of the air vent mount, then click the ball into the back of the car mount.
Tighting the nut to secure the two parts together.
Rotate the dial on the air vent mount counter-clockwise to extend the hook.
Insert the hook into your airvent, and rotate the dial clockwise to secure the hook.
Note, this product is not compatible with many round air vent styles. See image above.
Our 30W USB-C + USB-A Rapid Power Car Charger is a great way to power a Matrix Car Charger and another accessory.
Simply slot your power bank into the car mount to recharge your power bank at the same time as your phone, without the hassle of dealing with cables.
This wireless charging pad is a compact, 15W MagSafe-compatible Qi charger and can be used slotted into the dock/car mount, or by itself if plugged into a USB-C power source.
The Matrix 5,000mAh Wireless Power Bank has two additional features:
1. A 5,000mAh battery to recharge devices without a power source
2. The ability to charge other devices using via its USB-C port, using battery power.
So, while the charging pad can only charge one MagSafe-compatible device and needs to be connected to a power source (USB-C or a Matrix dock), the Power Bank can provide on-the-go charging without being plugged in.
Compatibility
Just snap your phone onto the charger and it will automatically align to the optimal charging position.

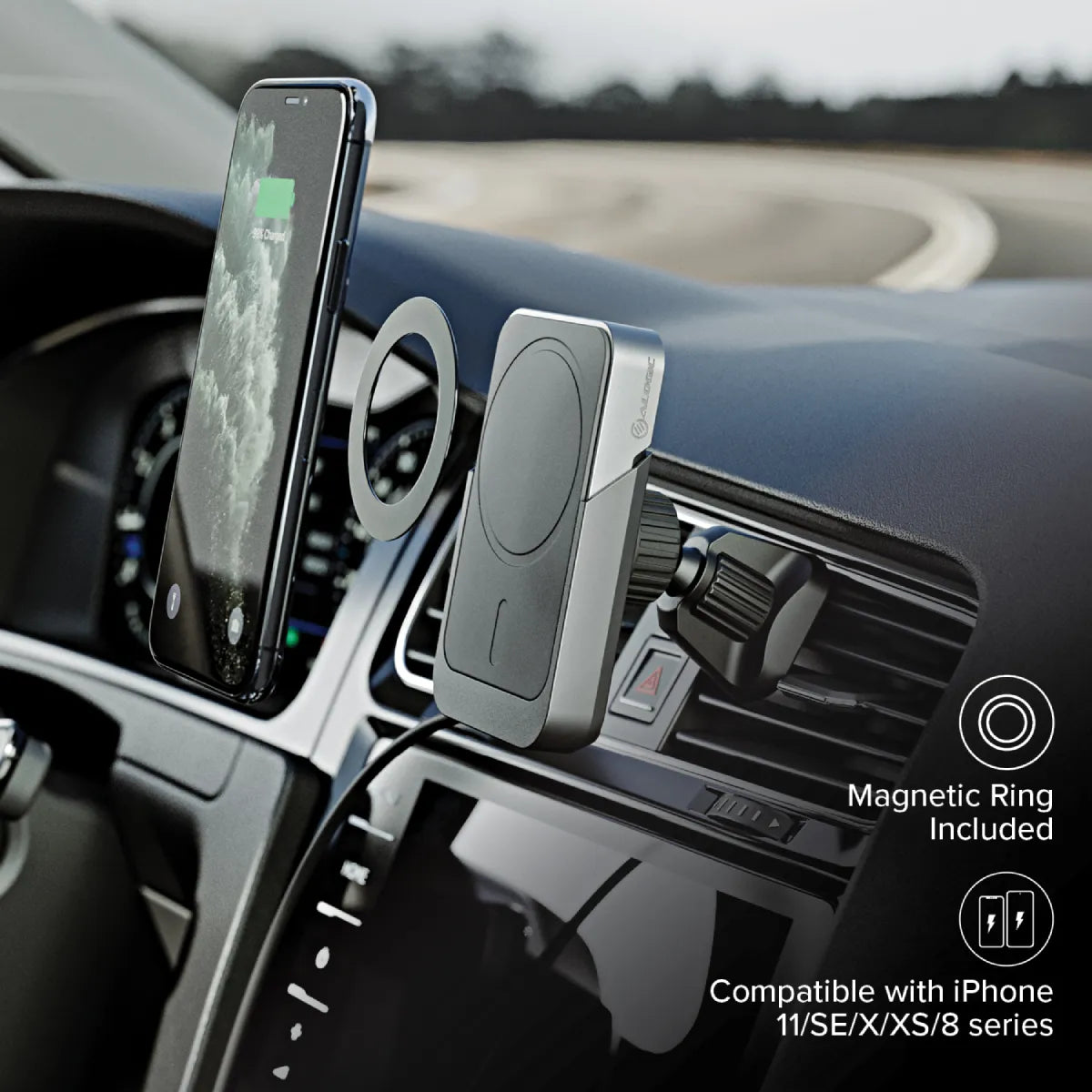

J iPhones 8, 9, 10 and 11 also work with Matrix, however you first need to attach the included Magnetic Support Ring to the back of your iPhone or preferred case to allow it to attach to the Matrix Magnetic Charger.
They can deliver power at speeds up to 15W.
Almost all modern Android phones that support wireless charging use Qi, and can charge with Matrix.
This includes:
Samsung Galaxy S7 or later
Samsung Note 5 or later
Samsung Galaxy Z/Flip and Fold
Google Pixel 3 or later

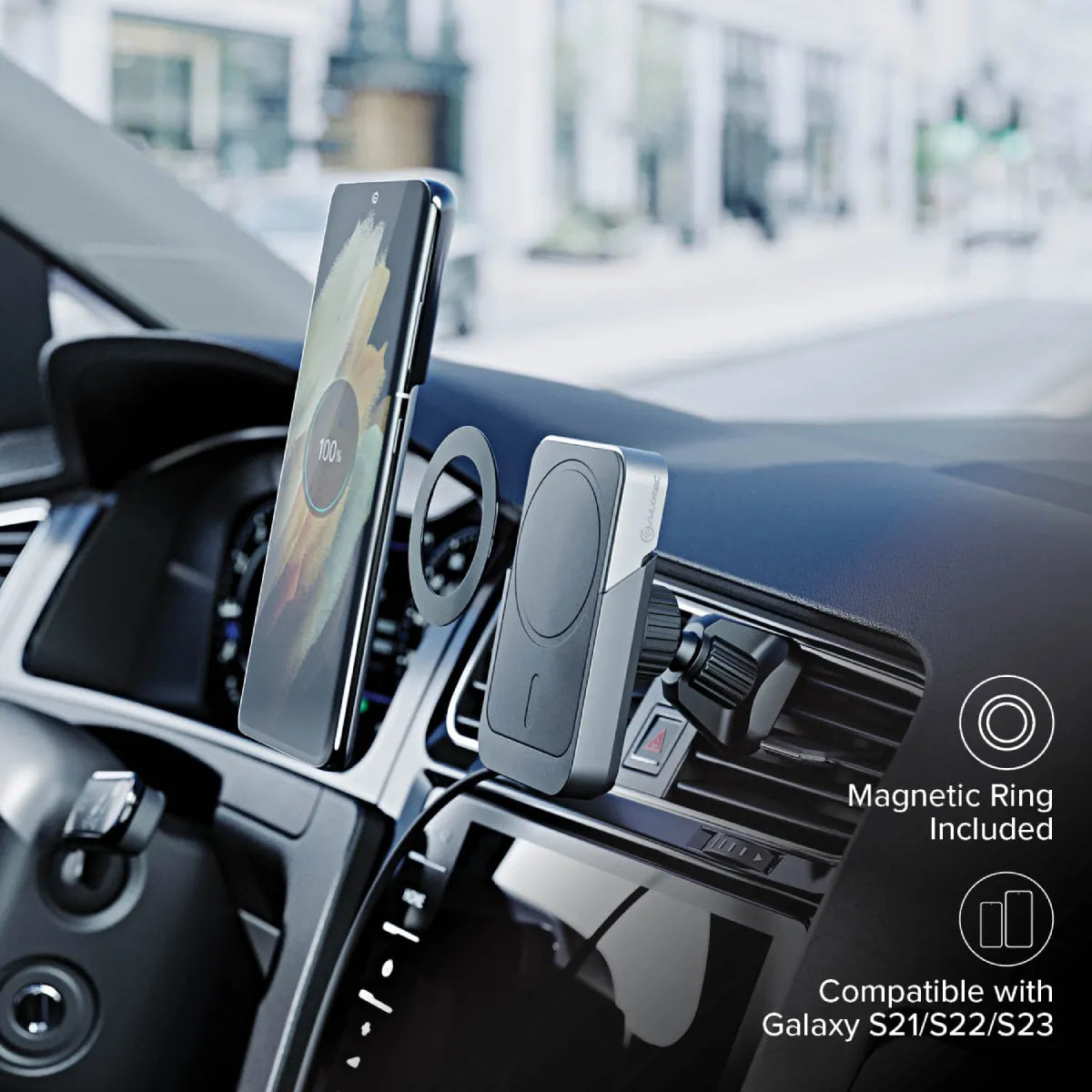

To use a Qi-charging phone with a Matrix magnetic charger, you will need to attach the included Magnetic Support Ring onto the back of your phone or case.
To make this as easy as possible, Matrix chargers include an alignment tool with measurements for the most popular Android phones, to ensure the ring correctly aligns your phone to its optimal charging position.
a. MagSafe-compatible cases or;
b. Cases less than 4mm thick
Using a case thicker than 4mm without in-built MagSafe-compatibility is likely to interfere with wireless charging and your phone's adherence to the carger.
Attaching the Magnetic Ring included with Matrix Products to your case may improve magnetic and charging reliability, however this is not recommended for cases with metal components, as these may overheat during charging.
Troubleshooting
Double check your phone is compatible with either Qi or MagSafe charging. If it doesn’t support these styles of wireless charging, it won’t work with Matrix.
If using a Matrix Power Bank, check if the power bank is charged by pressing the top button. If no LEDs light up, you need to recharge your Power Bank.
Remove your phone from the charger and remove your phone from the charger and reattach it, ensuring the centre of your phone aligns with the ring on the charging pad.
Ensure your Matrix magnetic charging pad, charging dock or car charger is plugged into a power source of at least 20w via its rear/bottom USB-C cable.
If your phone is in a case, try removing it. Cases thicker than 4mm can interfere with wireless charging.
Matrix Magnetic Chargers have a number of safety features that can disable charging in case of danger. To ensure one of these is not interfering with operation:
Check that there are no other objects on the charging surface, especially ones between the phone and charger. Objects not designed for MagSafe charging may heat up during the charging process and damage the charger or your phone. When detected, the charger switches off.
Ensure your phone does not contain small metallic elements, such as foil logos. These may overheat during charging and damage the case, phone and charger.
